High-speed FPV quadcopter

An FPV build integrating propulsion, electronics and a removable shell.

Project
Personal project
Year
2026
Assembled FPV quadcopter with its enclosing shell fitted.
Assembled quadcopter with the shell fitted.

The brief

Build and tune an FPV quadcopter, integrating the airframe, propulsion and control electronics.

The approach

The rear shell uses a twist-lock for battery access. Cutouts provide USB access and ESC cooling. Wiring, harness configuration and controller setup complete the integration.

Work shown

  • Airframe and shell integration
  • Wiring and controller configuration
  • Control-loop tuning

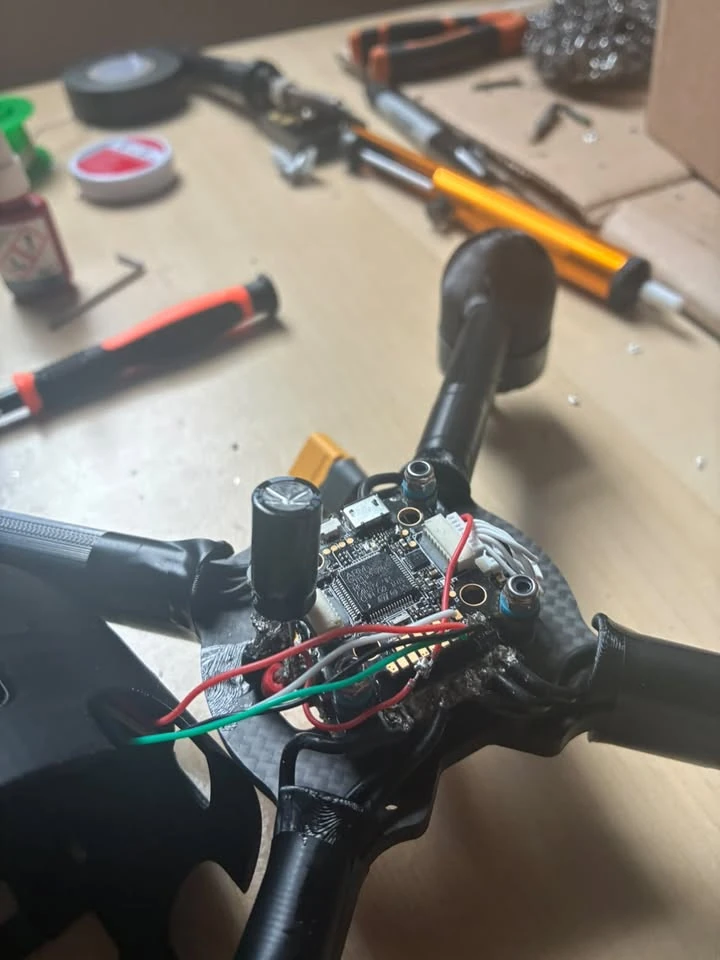

Exposed flight electronics and wiring inside the FPV quadcopter.
Flight controller, ESC, receiver and wiring integration.

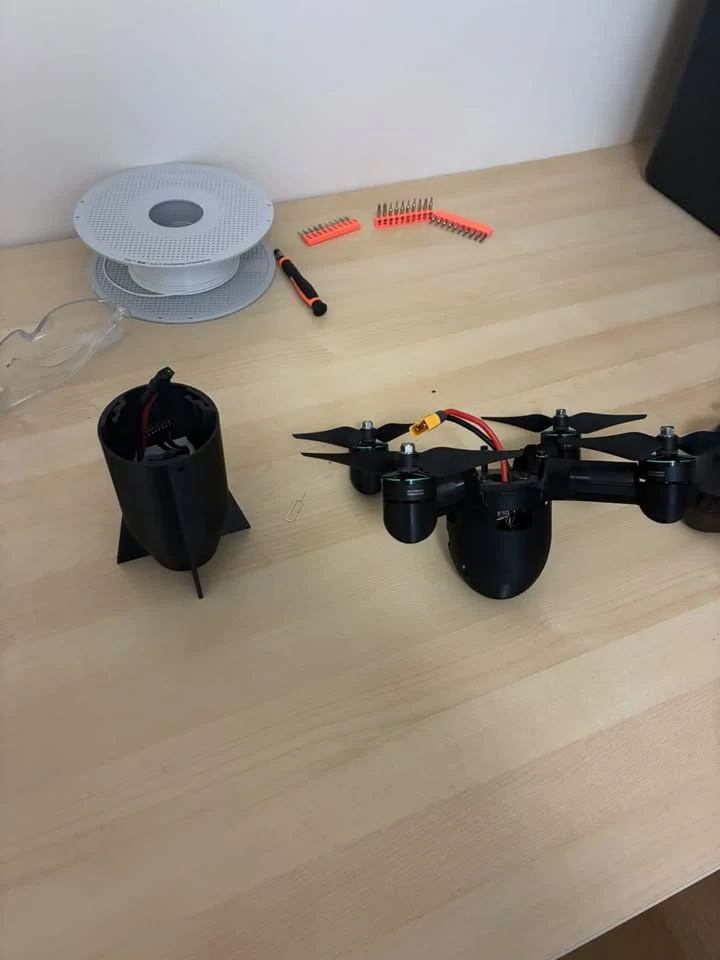

FPV quadcopter with its removable rear shell beside the airframe.
Removable rear shell for battery access.
